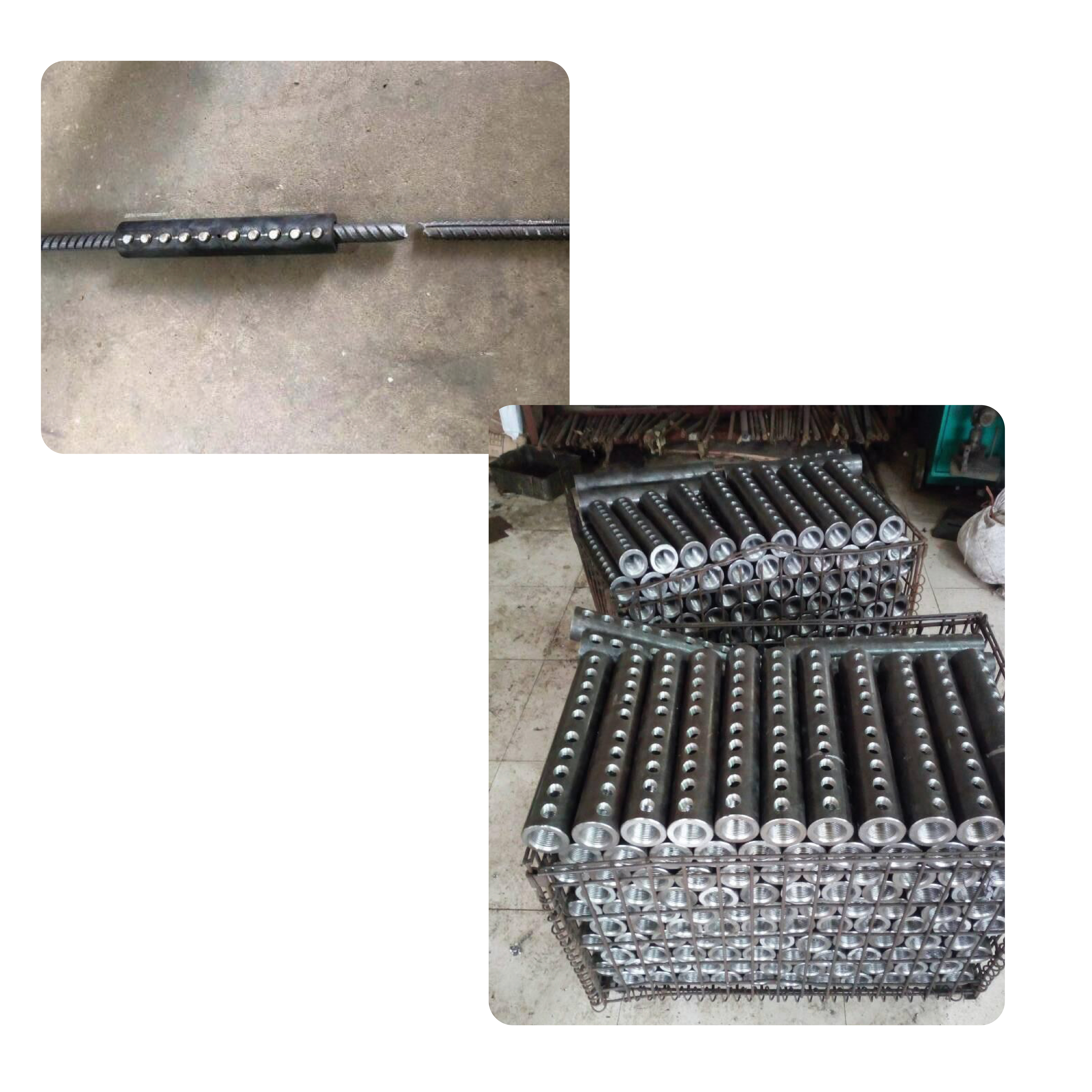

Bolted quick connection
Simple 3-2-1 Installation:
1) Insert the BOLT coupler over reinforcing bar 1.
2) Tighten bolts from the center to the end to secure onto
the first reinforcing bar.
3) Repeat steps 2 & 1 with the second reinforcing bar on the
other side ofthe coupler.
This cutaway shows BOLT COUPLER’s gripping
technology on the inside of the coupler and round
bolts on the outer edges of the coupler.
Meets or exceeds major international building code Transportation and Department of requirements, including Caltrans Ultimate Splice requirement, IBC , UBO and ACI 318 Type 2, DIN 1045, BS8110, BNFL, and BS5400.
Is smaller than other bolted splices currently available.
Performs like a continuous piece of rebar.
Works in repair, bent bar, retrofit, precast closure pour and new construction applications.
Meets slip criteria of less than 0.10 mm (0.0039 in).
Works with a variety of standard US and international rebar grades.
Installs quickly and easily using simple handtools does not require special skilled labor.
Allows for simple visual inspection.
Works as one-step transition on ASTM (in-lb) and metric rebar.

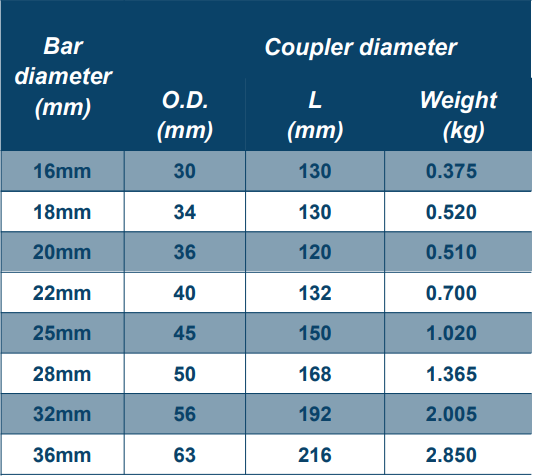

Coupler size table
